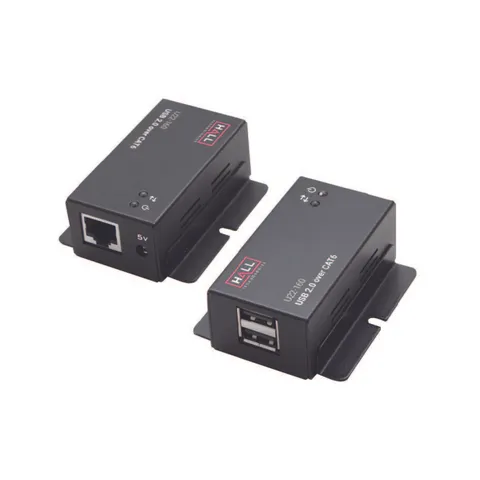

Hall Technology USB 2.0 over UTP Extender with 2-Port Hub - Grey
SKU: U22-160 Barcode: 724696530275USB 2.0 over UTP Extender with 2-Port Hub Read more Read less
Product Enquiry
Features
- Extends USB 2.0 devices up to 165 ft (50 m) using Cat5
- Supports high-speed, full-speed, and or low-speed devices
- Status LEDs indicate Power and Data
- Supports Hot Plug/Unplug
- Can power most USB devices without power supply
- Plug and Play installation
Specifications
<table class="table table-bordered mb-0" style="margin-right: calc(44%); width: 56%;">
<tbody>
<tr>
<td width="25%"><strong>Bus Interface</strong></td>
<td width="75%">USB 2.0</td>
</tr>
<tr>
<td width="25%"><strong>Number of Ports</strong></td>
<td width="75%">2 (on the Remote Unit)</td>
</tr>
<tr>
<td width="25%"><strong>Local unit</strong></td>
<td width="75%">1 x USB type B female<br>1 x RJ45 Ethernet female<br>1 x DC Power supply</td>
</tr>
<tr>
<td width="25%"><strong>Remote Unit</strong></td>
<td width="75%">2 x USB type A female<br>1 x RJ45 Ethernet female<br>1 x DC Power supply </td>
</tr>
<tr>
<td width="25%"><strong>LEDs</strong></td>
<td width="75%">1 x Power, 1 x Data</td>
</tr>
<tr>
<td width="25%"><strong>Max Data Rate</strong></td>
<td width="75%">480 Mbps</td>
</tr>
<tr>
<td width="25%"><strong>Max Cable Distance</strong></td>
<td width="75%">50m (165 ft)</td>
</tr>
<tr>
<td width="25%"><strong>Cable Type</strong></td>
<td width="75%">Cat 5e/6/6a</td>
</tr>
<tr>
<td width="25%"><strong>Power Supply</strong></td>
<td width="75%">5V DC 2A</td>
</tr>
<tr>
<td width="25%"><strong>Operating Temperature</strong></td>
<td width="75%">32 to 122 °F (0 to 50 °C)</td>
</tr>
<tr>
<td width="25%"><strong>Operating Humidity</strong></td>
<td width="75%">20% - 80% RH</td>
</tr>
<tr>
<td width="25%"><strong>Dimensions</strong></td>
<td width="75%">Ends: 2.5 x 1.3 x 0.9 inch (65 x 35 x 25 mm)<br>Shipping: 9.5 x 8 x 3 inch (24 x 20 x 8 cm)</td>
</tr>
<tr>
<td width="25%"><strong>Weight</strong></td>
<td width="75%">Shipping: 1 lbs (450g)</td>
</tr>
</tbody>
</table>
Product Specifications
Series Description | USB 2.0 over UTP Extender |
---|---|
Colour | Grey |
Series | USB Extension |
Device Family | Pro AV |
Manufacturer | Hall Technology |
Warranty | 12 Months |
Length | Black |
