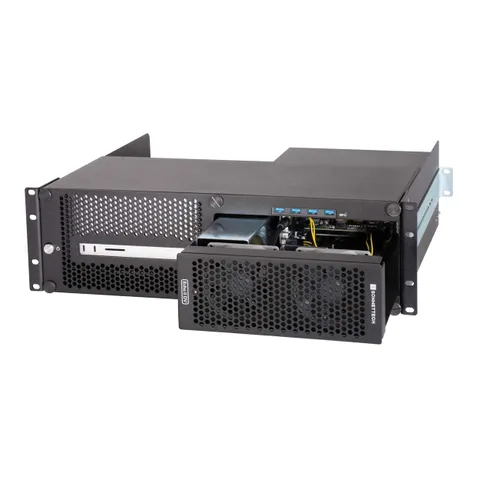

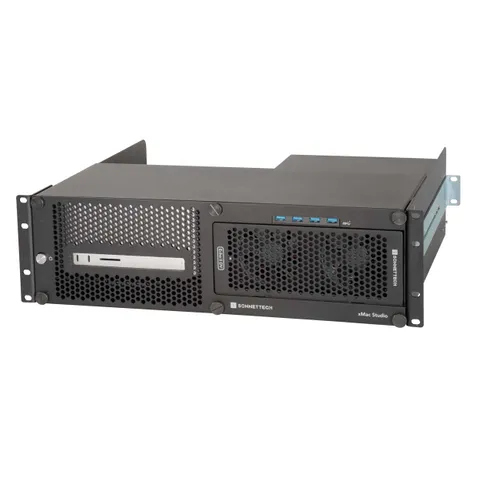

Sonnet xMac Studio, Echo II DV

• Two PCIe 3.1 slots - (two x16 slots; support PCIe 4.0, 3.1, 2.0, and 1.1 PCIe cards)
• Supports two full-height, full-length, single-width  PCIe cards
• Four 40Gbps Thunderbolt ports
• 400W power supply - (with two 75W aux. power connectors)
• Dual Noctua quiet fans (rated at 17 dbA)
• Includes power cable, two 40Gbps Thunderbolt cable, two ThunderLok 3 connector retainer clips, and two adhesive-backed magnets for mounting portable SSDs

External Connectors

•  Four Thunderbolt ports
• Power (C14-type)

Internal Connector

• Two auxiliary power; provides up to 75W of power for PCIe cards that require supplemental power

Expansion Slots (Top to Bottom)

• Two x16 mechanical (x8 electrical) PCIe 3.1

PCIe Cards Supported

• Two full-length, full-height, single-width PCIe cards

Power Supply

• Universal 400W, 115-230V AC, 50-60 Hz

Operating Temperature

• 0ºC to 35ºC (32ºF to 95ºF)

Dimensions (WxDxH)

• 48 x 41.9 x 13.3 cm (19 x 16.5 x 5.2 in)

SSD Maximum Height

• 0.7 in. (18 mm) inserted from rear
• 0.9 in. (23 mm) inserted from front

Weight

• 9.53 kg

Compliance

• RoHS 3 (Directive 2015/863)
• IEC62368-1 and IEC62368-2 Safety
