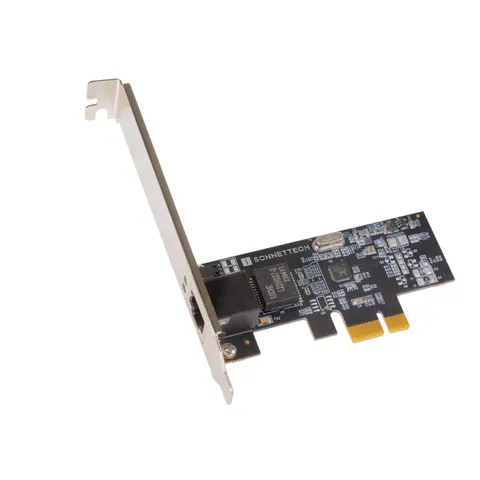

Sonnet Technology Solo2.5G 2.5GBASE-T Ethernet 1-Port PCIe Card

SKU: G2A5E-1X-E Barcode: 732311013836

Solo2.5G 2.5GBASE-T Ethernet 1-Port PCIe Card Read more Read less

Qty.
Product Enquiry

Features

  • Budget Friendly: 2.5GbE switches and Sonnet’s SOLO2.5G PCIe Card are bargain-priced.
  • Uses Existing Cabling: Faster transfers supported over common Cat 5e wiring originally installed for Gigabit.
  • Gamer Advantage:  A faster network can reduce lag and increase overall smoothness of game play.
  • Remote Work Made Easy: Saves valuable time by downloading files faster.
  • Backup to NAS Is a Breeze: Back up files to Network Attached Storage 2.5x as fast.
  • Package Contents: One SOLO2.5G PCIe Card and Two PCIe mounting brackets (full-height and low-profile).
  • Compatible with Linux and Windows Computers.

Specifications

Compatibility

 Windows Compatibility
  •  Windows computer with available PCIe slot
  • Windows 11 and 10

Linux Compatibility

  • Linux computer with available PCIe slot

Thunderbolt PCIe Expansion System Compatibility

  • Supports USB 3 devices when card is installed in a Thunderbolt to PCIe Card Expansion System

Hardware

Part Number

  • G2A5E-1X-E

Warranty

  • 2-year

Form Factor

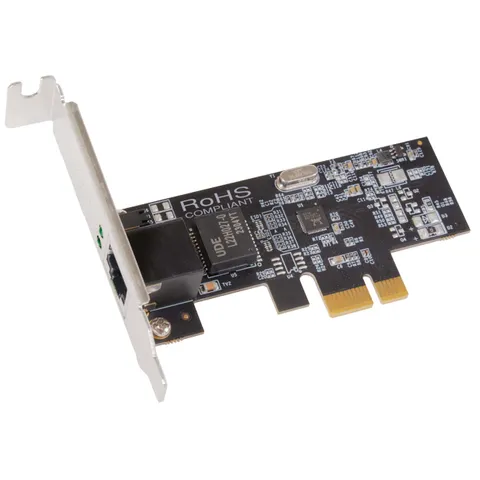

  • Low-profile x1 PCIe card

Bus Interface

  • PCI Express 2.1

External Connectors

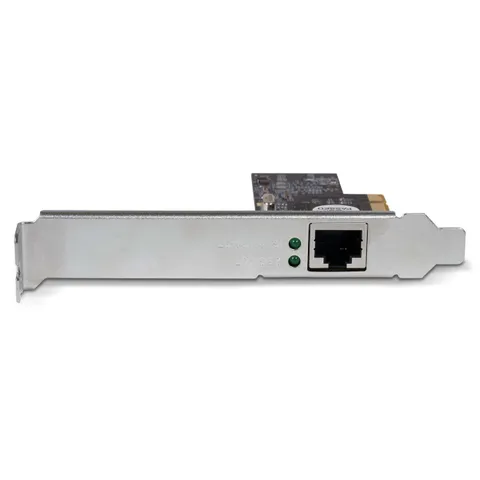

  • One RJ45 port

2.5GbE Controller

  •  Realtek 8125B

Network Support

  • 2.5GBASE-T, 1000BASE-T, 100BASE-TX
    (100 meters using Cat 5e [or better] cabling)

Packets

  •  Maximum packet size: up to 16128 bytes (Jumbo Frames)

Data Rates Supported

  •  2.5 Gb/s, 1 Gb/s, 100 Mb/s

Operating Temperatures

  •  0ºC to 35ºC (32ºF to 95ºF)

Compliance

  • RoHS 3 (Directive 2015/863)
  • IEC62368-1 and IEC62368-2 Safety

Package Contents

  • Solo2.5G PCIe Card

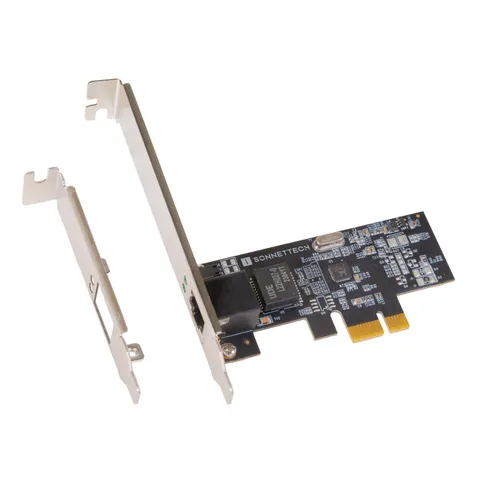

  • Two PCIe mounting brackets (full-height and low-profile)

Product Specifications

Colour Black
Series Ethernet Adapter
Manufacturer Sonnet
Weight 0.16
Warranty 12 Months
Range 2.5Gb Ethernet Networking
Box Contents

1 x Solo2.5G 2.5GBASE-T Ethernet 1-Port PCIe Card
2 x PCIe mounting brackets (full-height and low-profile)

Featuring NBASE-T technology (also known as multi-Gigabit Ethernet), Solo2.5G PCIe Card supports 2.5 Gb/s link speeds (2.5GBASE-T) over common Cat 5e or better cabling when used with a compatible 2.5Gb Ethernet switch or 10Gb Ethernet switch with NBASE-T support. Very affordable 2.5GbE models from D-Link, Netgear, QNAP, TP-Link, TRENDnet, and others are available now. Connected to the right switch, you can get great performance gains — 250 percent the speed of Gigabit Ethernet — without rewiring! In case you’re connecting to a switch without NBASE-T support, the Solo2.5G also supports 1 Gb/s and 100 Mb/s link speeds.
