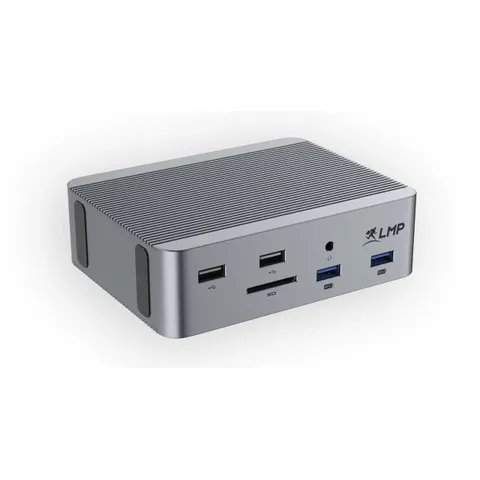

LMP USB4 SuperDock 2 15-Port USB4 Docking Station - Space Grey
SKU: 26770 Barcode: 7640113438210LMP USB4 SuperDock 2 15-Port USB4 Docking Station - Space Grey Read more Read less
Product Enquiry
Features
- USB4 docking station (compatible with Thunderbolt 3 & 4)
- 15 ports including Kensington Security Slot
- Dual monitor support up to 5K@60 Hz
- 2x HDMI, 1x DisplayPort, 1x Ethernet, 1x SD Card Reader, 1x 3.5 mm Audio In/Out and 1x Kensington Security Slot
- 8 USB ports, 3 of them with 10 Gbps
- Power Delivery 3.0 via USB4 (up to 100 W charging power to host)
- BC 1.2 1.5A for charging smartphone/tablet via USB/USB-C
- On/Off switch for complete switch-off
- Elegant aluminium design
- Horizontal or vertical stand

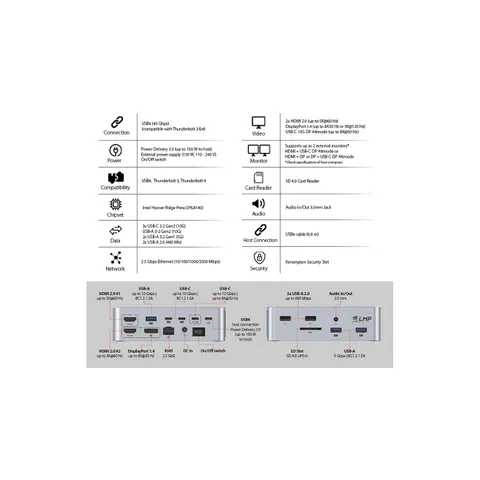

Specifications
Connection type | USB4 (40 Gbps) Compatible with Thunderbolt 3 & 4 |
|---|---|
Video ports | 2x HDMI 2.0 (up to 5K@60 HZ) DisplayPort 1.4 (up to 8K@30 Hz or 5K@120 Hz) USB-C 10G DP Altmode (up to 8K@30 Hz) |
Data ports | 3x USB-C 3.2 Gen2 (10G) 1x USB-A 3-2 Gen2 (10G) 2x USB-A 3.2 Gen1 (5G) 2x USB-A 2.0 (480 Mb) |
| Network ports | 1x 2.5 Gbps Ethernet (10/100/1000/2500 Mbps) |
| Audio ports | 1x Audio In & Out (3.5 mm) |
| Card reader | SD 4.0 Card Reader |
| Color | Space Gray |
| Material | Aluminum |
| Power supply | External, 135 W, 110 - 240 V |
| Product dimensions (W x H x D) | 13.4 x 4 x 10.3 cm |
| Product weight | 417 gr |
Package content | LMP USB4 SuperDock 2 USB4 cable (0.8 m) 3-prong CH cable (1.2 m ) 3-prong EU cable (1.2 m) Power supply (1.2 m cable) |
Notes | Un-mount any attached devices before unplugging power or host connection. Dual monitor support by DP Altmode protocol. Check host specifications for support of external monitors. Not compatible with Apple USB SuperDrive.May evolve heat when in use. May evolve heat when in use. |
Product Specifications
| Colour | Grey |
|---|---|
| Series | USB-C Multi-Function Hub |
| Range | USB-C Hub |
| Manufacturer | LMP |
| Warranty | 12 Months |
| Weight | .42 |
| Box Contents | 1 x LMP USB4 SuperDock 2 |
The LMP SuperDock 2 is an all-in-one USB4 solution boasting 15 ports for seamless data transfer, high-res video and audio connectivity, and fast and reliable network access over a single USB4 cable. Thanks to its Intel chipset JHL8140, it is fully compatible with Thunderbolt 3 and 4. Featuring a 130 W power adapter, the SuperDock 2 supplies up to 100W (Power Delivery 3.0) to any laptop which can charge through USB4 or Thunderbolt 3 or 4 such as MacBook Pro/Air. The SuperDock 2 is compatible with macOS and Windows OS.
A total of 8 USB ports – 4 on the front and 4 on the rear side – secure the connection of just about any USB peripheral to the host computer. The speeds range from fast 10 Gbps to 5 Gpbs and down to USB 2.0 (480 Mbps) for low-speed peripherals such as keyboard and mouse. The USB-A and USB-C ports also provide power of up to 7.5W (BC1.2 1.5A) for charging an iPhone or other USB-C devices.

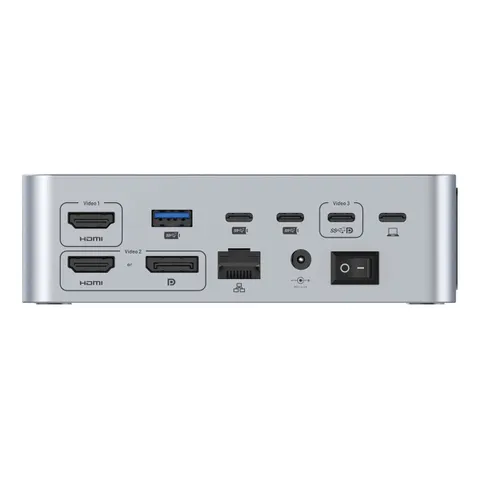

The SuperDock 2 features 2 HDMI, a DisplayPort as well as a USB-C port with DP Altmode capability. The DisplayPort (DP 1.4) and the USB-C DP Altmode video ports can reach up to 8K@30 Hz or 5K@120 Hz resolutions while the HDMI (HDMI 2.0) are capable of 5K@60 Hz. Dual monitors in Extended Mode are supported with a choice between Video 1 (HDMI #1), Video 2 (HDMI #2 or DP) and Video 3 (USB-C DP Altmode). The video signal is transmitted through DP Altmode protocol so check the host's video support for external monitors (limitations may apply in the number of external monitors through DP Altmode).
A 2.5 Gbps network port (RJ45) with the latest chipset from Realtek (RTL8156B) brings fast and reliable network connection. It's simple plug'n'play with auto-detection of network bandwidth as well as Wake-On-LAN support.

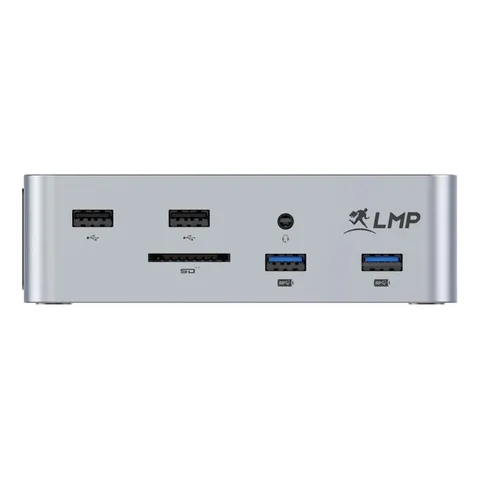

On the front side, a SD card slot (SD 4.0 UHS-II) and a Audio In/Out (3.5 mm jack) are easily accessible. A Kensington Security Slot secure the SuperDock 2 and the on/off button on the rear side help save energy when not in use. A 0.8 m USB4 cable is supplied so the SuperDock 2 can be positioned in a good distance to the workspace. Crafted from high-quality aluminum with an anodized surface finish, the SuperDock 2 can be positioned horizontally or vertically, adding functionality and elegance to any setup.
