Sonnet M.2 8x4 Silent Gen4 PCIe Card - Black
SKU: FUS-SSD-8X4-E4S Barcode: 732311013652M.2 8x4 Silent Gen4 PCIe Card Read more Read less
- Categories:
- PCIe Cards,
- Storage,
- Storage Solutions
Product Enquiry
Features
Add up to 64TB Ultra-fast Storage
Mounts up to eight 8TB M.2 NVMe Gen4 or Gen3 SSDs (sold separately) in an x16 PCIe slot. Higher-capacity SSDs will be supported when available.
High-performance PCIe Interface
PCI Express 4.0 x16 host bus interface plus x48 PCIe 4.0 switch; x16 slot bandwidth is available to all x4-connected SSDs.
Superior Performance
Achieve sustained four SSD RAID 0 speeds up to 30,000 MB/s.
RAID Support
Supports macOS, Windows, and Linux RAID 0, 1, and 10 support.
macOS Boot Support
Supports booting from single (non-RAIDed) attached SSDs.
No Thermal Throttling
Custom silent cooling solution enables installed SSDs to maintain consistent high performance during very large file transfer operations without the use of fans.
Thunderbolt Compatible
Use in Sonnet Thunderbolt expansion systems to connect up to eight SSDs through one cable with performance up to 2800 MB/s.
NVMe Compliant
No drivers required.
S.M.A.R.T. Operation
Supports S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) data reporting.
Specifications
Compatibility
Mac Compatibility
- Mac Pro 8,1 (2023)
- Mac Pro 7,1 (2019) – Use x16 PCIe slot (slot 3, 4, or 5) for best performance
- Mac Pro 5,1 – Use x16 PCIe slot (slot 2) for best performance
- macOS 10.13.6+
- macOS Ventura compatible
Windows Compatibility
- Windows computer with available full-length, full-height x16 PCIe slot (PCIe 4.0 slot preferred; PCIe bifurcation not required)
- Windows 11 and 10
- Windows Server 2022, 2019
Linux Compatibility
- Linux computer with available full-length, full-height x16 PCIe slot (PCIe 4.0 slot preferred; PCIe bifurcation not required)
- Linux Kernel 5.0+
Thunderbolt Compatibility
- With card installed in a Thunderbolt expansion system with full-length x16 PCIe slot
- Any Mac, Windows, or Linux computer with Thunderbolt
Power Requirements
- When seven or eight SSDs are installed on the M.2 8x4 Silent Gen4 PCIe Card, connecting the included 6-pin PCIe auxiliary power cable between the computer’s and the card’s power connectors is required (optional when up to six SSDs installed).
M.2 NVMe SSDs Compatibility
- Western Digital PCIe Gen4 SSDs are NOT compatible
- For a list of compatible M.2 NVMe SSDs, see the following PDF
Compatible SSD's
Technical Notes:
- You may install fewer than eight SSDs now and add more later without needing to reformat existing ones. Only 2280 (80mm — the most common length) length M.2 SSDs are supported. M.2 SSDs longer or shorter than 80mm don’t fit.
Product Specifications
| Colour | Black |
|---|---|
| Series | M.2 NVMe and 2.5-inch SATA SSD PCIe Cards |
| Range | Sonnet M.2 |
| Weight | 0.4 |
| Warranty | 12 Months |
| Manufacturer | Sonnet Technology |
| Box Contents | 1 x Sonnet M.2 8x4 Silent Gen4 PCIe Card *SSD's Sold Seperately |

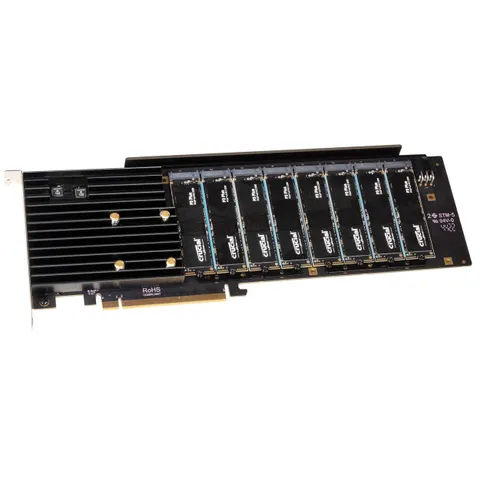

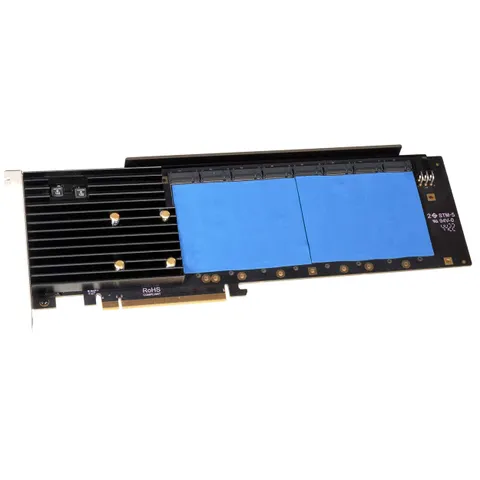

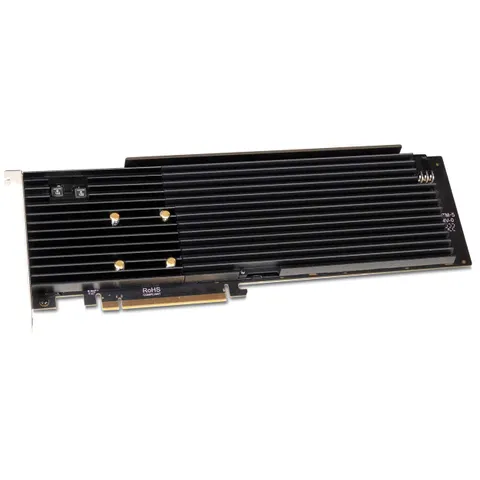

Sonnet M.2 8x4 Silent Gen4 PCIe Card
Eight M.2 NVMe SSD Slots on a PCIe 4.0 x16 Card
Speed or capacity? Not too long ago, you had to make a choice between the two. The problem is, for many professional workflows, both are critical. Everyone knows M.2 NVMe PCIe SSDs offer great performance, but limited capacity. Hard drives offer great capacity, but very slow speeds by comparison. What if you could create increased SSD capacity? We make it possible — the Sonnet M.2 8x4 Silent Gen4 PCIe® Card enables you to mount up to eight NVMe SSDs into a single x16 PCIe card slot and combine their capabilities for ultra-performance. This card can transform your workflow.
* SSDs sold separately
