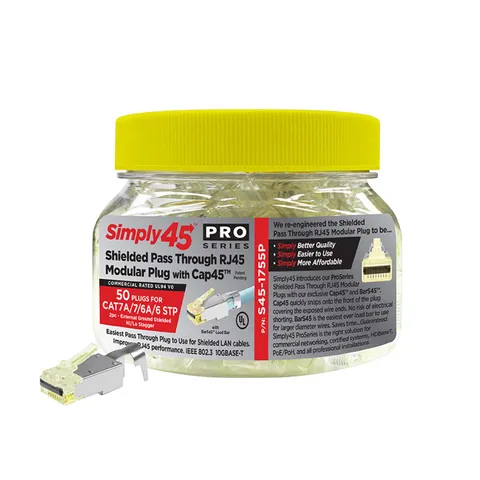

Simply45® ProSeries 10G Shielded External Ground - Pass-Through RJ45 with Cap45™ & Bar45™
SKU: S45-1755P Barcode: 817777017731ProSeries 10G Shielded External Ground - Pass-Through RJ45 with Cap45™ & Bar45™ Read more Read less
- Categories:
- Pro Networking,
- Pro Networking
Product Enquiry
Features
imply45® the industry-leading brand for RJ45 modular plug innovation and performance solutions introduces our ProSeries Shielded with External Ground Pass-Through RJ45 Modular Plug, S45-1755P. The uniquely designed and patented Simply45® ProSeries S45-1755P simplifies and improves the terminated plug performance for shielded 10G LAN cables. The Simply45® ProSeries S45-1755P Pass-Through RJ45 modular plugs are by far the highest performing, easiest to use, and most cost-effective way to professionally terminate 10G Shielded and other large diameter shielded LAN cables.
The S45-1755P are IEEE 802.3 10GBase-T compliant and are recommended for shielded 10G LAN Cables Cat7a/7/6a with FPE insulated wires, and Large OD Shielded LAN cables with PE insulated wires such as Cat6 STP and Cat6a F/UTP. These plugs include some unique features that simplify the RJ45 10G termination process and improves the terminated plug performance.
Simply45® ProSeries introduces the exclusive Cap45™ (PATENT: 10,811,831 B1). Cap45™ is an isolation cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, covering the exposed wire ends. Cap45™ prevents electrical shorting in the RJ45 socket due to improperly trimmed wires or in device sockets that may not be 100% compliant. With Cap45™, any electrical risks associated with exposed wire ends are now eliminated completely.
Cap45™ is a MUST HAVE for all pass-through RJ45 modular plugs used in commercial and certified system terminations.
Our S45-1755P ProSeries Pass Through RJ45 modular plugs incorporate the following features:

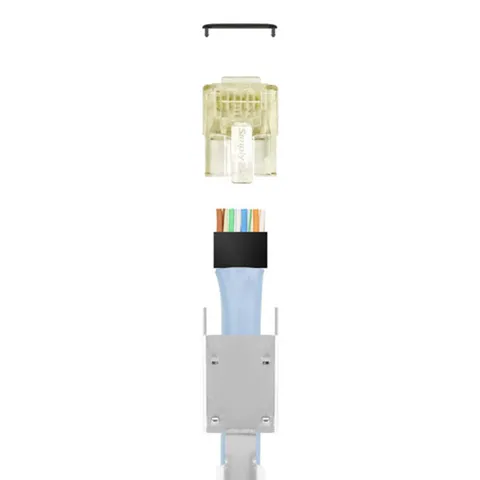

Two-Piece Plug. We tried all that we could to use a one-piece design, but it proved too difficult to work with during the testing trials. As such, we separated the metal shell shield from the RJ45 body. This allowed us to make additional modifications and the result is a dramatically improved termination process that is faster and easier to use. Separating the plug body from the metal shield allows the large diameter 10G LAN cables to be inserted further into the plug. This is a significant advancement in RJ45 design because this feature improves NEXT performance by reducing the length of untwisted wires inside the plug. Please refer to our Technical Bulletin "It's All About Those Twists? for more information on how this feature raises RJ45 performance.
The S45-1755P supports performance standards: ANSI/TIA 568.2-D for Cat7a/7/6a/6; ISO/IEC 11801 Class F, Ea, and E. Supports 10GBaseT performance applications over shielded twisted pair cables.
Bar45™ Load Bar– Again, we tried everything we could to avoid using a load bar for the shielded pass-through plugs, but without a load bar, we could not achieve the desired IEEE 802.3 10GBASE-T performance levels we were demanding. The uniquely designed Bar45™ load bar does 3 things:
Bar45™ is made of a material that provides better signal isolation improving NEXT performance;
Bar45™ Improves the signal integrity by reducing the length of open untwisted wires inside the plug;
Bar45™ is the easiest and fastest load bar to use for 10G LAN cable termination. No more headaches fiddling with the wires trying to get them to fit through the front of the pass-through RJ45 plug. Bar45™ makes it so easy. Learn more about Bar45™ here.

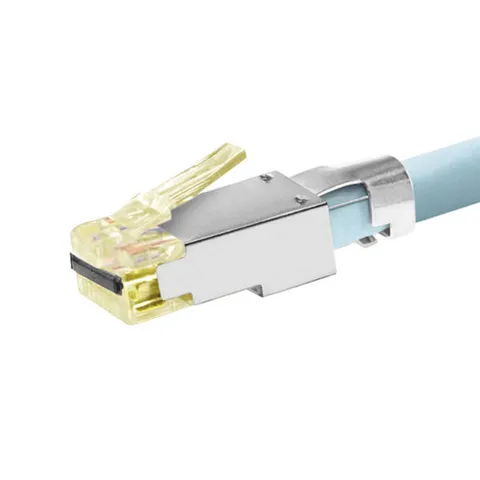

Cap45™ (PATENT: 10,811,831 B1). Cap45™ is an isolation cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, covering the exposed wire ends. Cap45™ is fast and easy to use. Fits all compliant RJ45 sockets. With Cap45™, any electrical risks associated with pass-through RJ45 modular plug exposed wire ends are now eliminated completely. Learn more about Cap45™ in our ProSeries Product Line discussion. If you don't want to use Cap45™, no problem. It will not affect plug performance. You just won't have the Cap45™ benefits.
High/Low Staggered Wire Insert. LAN cable wire conductors are easily inserted into the S45-1755P in a Staggered High/Low wire arrangement out through the front of the RJ45 pass-through modular plug. The S45-1755P is recommended for shielded 10G LAN cables and other large diameter shielded LAN cables. It accommodates both FPE (Foam PE) and PE insulated wires. Wire conductor sizes for 23 AWG Solid from 1.15mm to 1.35mm (0.045"- 0.053").
Accommodates Large Diameter Shielded LAN Cables. The S45-1755P is the perfect RJ45 for large diameter shielded 10G LAN cables such as Cat7a, Cat7, Cat6a with S/FTP, U/FTP, F/FTP, and F/UTP constructions. Also recommended for large diameter shielded Cat6 F/UTP LAN cables. Works with a multitude of jacket materials: PVC, Plenum, LSZH, Extruded, and even PUR. The maximum LAN cable diameter is 8.0mm (0.315").
3 Prong Pin Design with 50µ of True 24ct Gold Plating. All Simply45® pass-through RJ45 modular plugs use only 50µ 24ct gold plated 3-Prong pin design instead of a 2-Prong design as found on most other pass-through RJ45 modular plugs.
Product Specifications
Series Description | ProSeries 10G Shielded External Ground |
---|---|
Colour | Yellow Tint |
Series | Pass-Through RJ45 |
Device | Cat6/6a STP |
Range | RJ45 ProSeries Pass-Through |
Connectors | RJ45 |
Warranty | 12 Months |
Manufacturer | Simply45 |
