Simply45® ProSeries Cat6 Shielded External Ground - Pass-Through RJ45 with Cap45™ & Bar45™

Simply45® the industry-leading brand for RJ45 modular plug innovation and performance solutions introduces our ProSeries Shielded with External Ground Pass-Through RJ45 Modular Plug, S45-1750P. The uniquely designed and patented Simply45® ProSeries S45-1750P simplifies and improves the terminated plug performance for shielded Cat6 LAN cables. The Simply45® ProSeries S45-1750P Pass-Through RJ45 modular plugs are by far the highest performing, easiest to use, and most cost-effective way to professionally terminate Cat6 Shielded STP and Cat6a F/UTP LAN cables.

Simply45® ProSeries introduces the exclusive Cap45™ (PATENT: 10,811,831 B1). Cap45™ is an isolation cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, covering the exposed wire ends. Cap45™ prevents electrical shorting in the RJ45 socket due to improperly trimmed wires or in device sockets that may not be 100% compliant. With Cap45™, any electrical risks associated with exposed wire ends are now eliminated completely.

Cap45™ is a must-have for all pass-through RJ45 modular plugs used in commercial and certified system terminations.

Our S45-1750P ProSeries Pass-Through RJ45 modular plugs incorporate the following features:

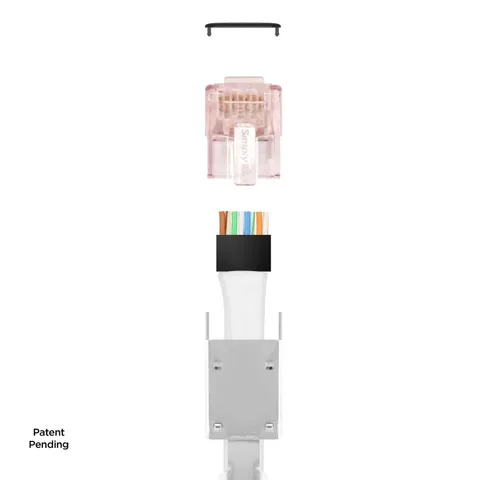

Two-Piece Plug. We tried all that we could to use a one-piece design, but it proved too difficult to work with during the testing trials. As such, we separated the metal shell shield from the RJ45 body. This allowed us to make additional modifications and the result is a dramatically improved termination process that is faster and easier to use. Separating the plug body from the metal shield allows the large diameter 10G LAN cables to be inserted further into the plug. This is a significant advancement in RJ45 design because this feature improves NEXT performance by reducing the length of untwisted wires inside the plug. Please refer to our Technical Bulletin "It's All About Those Twists? for more information on how this feature raises RJ45 performance.

The S45-1750P supports performance standards: ANSI/TIA 568.2-D for Cat6/; ISO/IEC 11801 Class Ea and E. Supports 10GBaseT performance applications over shielded twisted pair cables.

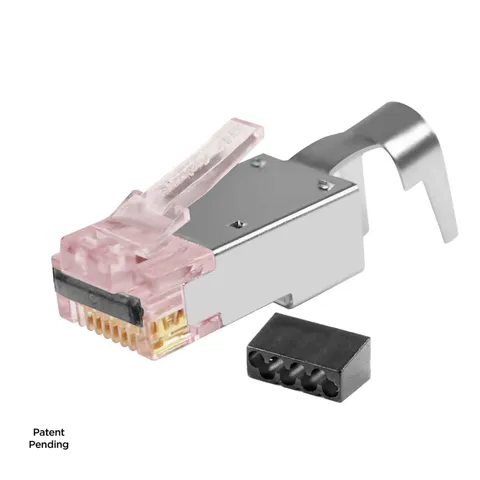

Bar45™ Load Bar. The exclusive Simply45® Bar45™ are load bars designed to match specific Simply45® RJ45 modular plugs to improve termination performance and SIMPLIFY the termination process. The innovative S45-1750P Bar45™ is the easiest to use load bars ever made for larger shielded LAN cables such as Cat6 STP and Cat6a F/UTP with PE insulated wires.

The S45-1750P Bar45™ does several things:

S45-1750P Bar45™ is made of materials that provide better signal isolation and substantially reduce the effects of crosstalk inside the RJ45 mod plug. Bar45™ absorbs and limits both near-end crosstalk (NEXT) and far-end crosstalk (FEXT), thereby improving cable performance.
The S45-1750P Bar45™ is correctly designed to maximize performance for PE insulated LAN cable wire conductors. It has a more traditional load bar design and works similarly to other load bars you may have used. However, the materials we use to create the S45-1750P Bar45™ are unique and provide better signal isolation and terminated performance than other load bars on the market. The S45-1750P Bar45™ uses a Hi/Lo stagger design that slides down to the LAN cable jacket. This significantly reduces the amount of untwisted wires inside the RJ45 plug.
S45-1750P Bar45™ combined with the S45-1750P internal RJ45 design innovations allows the LAN cable itself to be inserted further into the plug, reducing the length of untwisted wires. This symbiotic design of load bar and internal RJ45 plug design helps maintain improved headroom performance and better signal integrity than any other Standard RJ45 solution for larger diameter shielded LAN cables with PE insulated wires.

Works in all compliant RJ45 modular plug sockets. Supports performance standards: ANSI/TIA 568.2-D and ISO/IEC 11801.

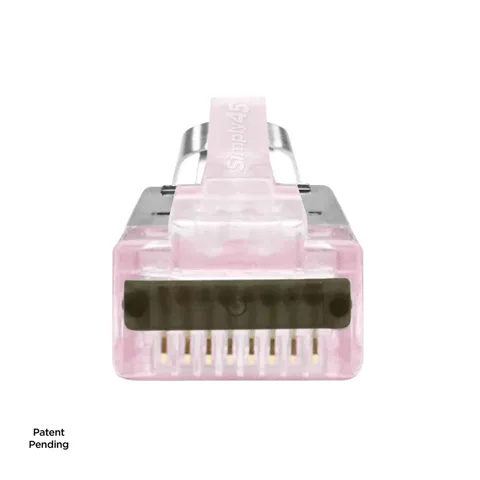

Cap45™ (PATENT: 10,811,831 B1). Cap45™ is an isolation cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, covering the exposed wire ends. Cap45™ is fast and easy to use. Fits all compliant RJ45 sockets. With Cap45™, any electrical risks associated with pass-through RJ45 modular plug exposed wire ends are now eliminated completely. Learn more about Cap45™ in our ProSeries Product Line discussion. If you don't want to use Cap45™, no problem. It will not affect plug performance. You just won't have the Cap45™ benefits.

High/Low Staggered Wire Insert. LAN cable wire conductors are easily inserted into the S45-1750P in a Staggered High/Low wire arrangement out through the front of the RJ45 pass-through modular plug. The S45-1750P is recommended for Cat6 shielded LAN cables. It accommodates PE insulated wires. Wire conductor sizes for 23 AWG Solid from 1.10mm to 1.20mm (0.043"- 0.047").
