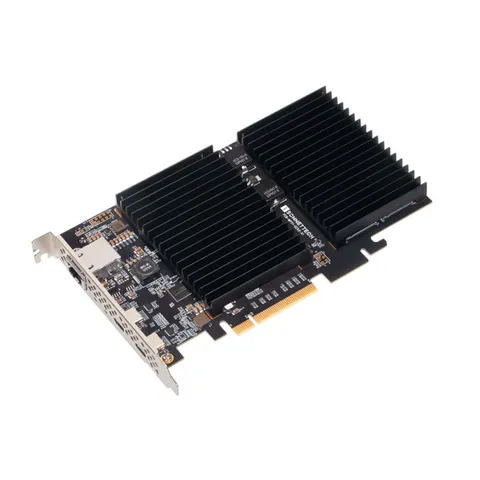

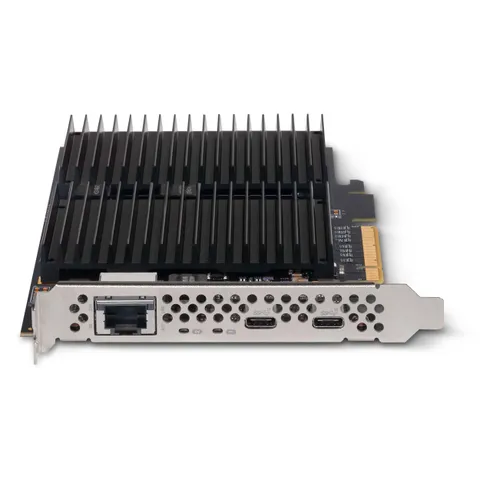

Sonnet McFiver PCIe Card

Key Features:
Multiple Functions, One Card
Provides NVMe storage, 10Gb Ethernet, and 10Gbps USB-C connections on one PCIe 3.0 card.

Two High Performance M.2 NVMe SSD Slots
Add up to 16TB of storage inside (SSDs sold separately); four lanes of PCIe 3.0 bandwidth available to each installed SSD achieve data transfer speeds up to 6600 MB/s (SSDs configured as RAID 0 set).

No SSD Thermal Throttling
An efficient integrated heat sink enables installed SSDs to maintain high performance during very large file transfer operations.

One 10GBASE-T Ethernet Port
Adds an RJ45 10GbE port to your computer with PCIe slots or Thunderbolt expansion system.

Supports NBASE-T Ethernet Technology
5 Gb/s and 2.5 Gb/s speeds supported over existing Cat 5e (or better) cabling at distances up to 100 meters.

AVB-Compliant Ethernet
Audio Video Bridging (IEEE802.1Qav, AVB) over Ethernet supported with Mac computers.

Two 10Gbps USB-C Ports
Adds two USB-C 10Gbps ports to your computer or Thunderbolt to PCIe card expansion system.

Advanced USB 3.2 Gen 2 Controller, Full 10Gbps Per Port
USB 3.2 controller enables each port to support data transfers at up to 1000 MB/s, even while transferring files from two drives concurrently.

Advanced USB Data Traffic Management
Supports "Multiple Ins? feature to enable multiple data transactions to take place simultaneously and eliminate bandwidth congestion.

Powered USB Ports
7.5W power is available per USB-C port, supporting bus-powered SSD, SSD RAID, and hub devices.

Protected USB Power Delivery
Independent port power regulation isolates each one to prevent cross-coupled power glitches that may cause accidental disconnects; resettable device overcurrent fuses protect the card and computer and may be reset by a simple shutdown.

Great for Use in Thunderbolt Expansion Systems
Use in a Sonnet Echo Thunderbolt expansion system with an available x8 PCIe slot to add NVMe storage, 10Gb Ethernet, and10Gbps USB-C connections to your computer without expansion card slots; see Tech Specs for important details.
