Sonnet Twin10G SFP+ Thunderbolt 3 Edition - Dual Port SFP+ 10 Gigabit Ethernet Adapter
SKU: TWIN10GC-SFP-T3 Barcode: 732311012099Twin10G SFP+ Thunderbolt 3 Edition - Dual Port SFP+ 10 Gigabit Ethernet Adapter Read more Read less
Product Enquiry
Features
Adds High-performance 10GbE SFP+ Connectivity
Simply powerful way to add dual SFP+ connections to your computer with Thunderbolt 2 ports.
Connection Flexibility
Your choice of connections (sold separately): short-range or long-range SFP+ transceivers, 10GBASE-T SFP+ transceivers, or SFP+ direct-attach Twinax copper cables.
Easy Setup
Configure the adapter's settings using operating system tools.
Two Thunderbolt 3 Ports
One port connects to computer; second port supports daisy-chaining of up to five additional Thunderbolt peripheral devices.
Small. Rugged. Quiet.
Rugged aluminum enclosure is compact enough to sit on most any work surface, and quiet enough for use in noise-sensitive environments.
Supports Transparent Failover
Keeps your computer connected in case a single cable is disconnected or one of the ports fails.
Supports Link Aggregation (Teaming)
Increases throughput beyond what a single connection can sustain.(1)
Power for Peripherals
Provides up to 10W of power to connected peripherals.
Specifications
0
Product Specifications
Colour | Black |
---|---|
Series | Ethernet Adapter |
Weight | 0.18 |
Warranty | 24 Months |
Series Description | Solo |
Range | 10Gb Ethernet Networking |
Manufacturer | Sonnet Technology |
Box Contents | Twin 10G SFP+ (Thunderbolt 2 Edition) |
Twin10G SFP+ (Thunderbolt 3 Edition)
Dual-port SFP+ 10 Gigabit Ethernet Thunderbolt 3 Adapter
Lightninig-fast 10GbE Connectivity Over Thunderbolt 3 for Mac, Windows, and Linux Computers
Do you need a simple and cost-effective way to connect your computer to a high-speed 10 Gigabit Ethernet (10GbE) network? By offering ten times the performance of Gigabit Ethernet and more bandwidth over shared networks, and by supporting specialized applications such as using high-performance shared storage systems for editing HD video, it’s no wonder that 10 Gigabit Ethernet use has skyrocketed—the problem is that the vast majority of computers don’t include a native connection. Sonnet’s Twin10G SFP+ 10GbE adapter is the powerfully simple solution for you to add lightning fast 10 Gigabit Ethernet network connectivity to any Mac® with Thunderbolt 3 or Thunderbolt ports, or any Windows® PC or Linux® computer with a Thunderbolt 2 port.
Flexibility of SFP+ Transceiver Choices
Sonnet offers three SFP+ transceiver options (sold separately)—a short-range multi-mode fiber module (up to 300 meters), part number G10E-SFP-SR; a long-range single-mode fiber module (up to 10 kilometers), part number G10E-SFP-LR; and a 10GBASE-T copper module, part number G10E-SFP-T (Cat 6A cable up to 30 meters). Alternatively, you can use cost-effective direct-attach Twinax copper cables up to 10 meters long (sold separately).
More Bandwidth

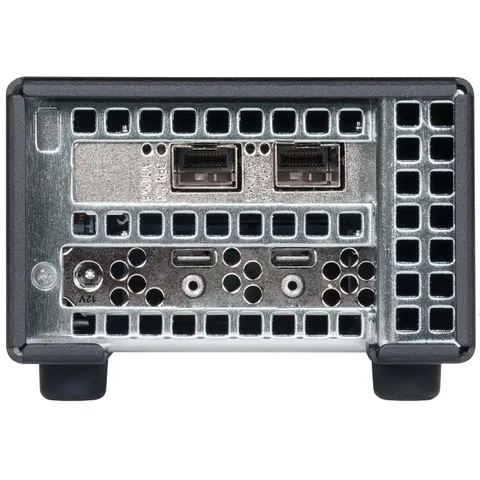

Equipped with two SFP+ sockets, the Twin10G SFP+ (Thunderbolt 3 Edition) adapter supports ten times the performance of Gigabit Ethernet and more bandwidth over shared networks.
Small and Quiet

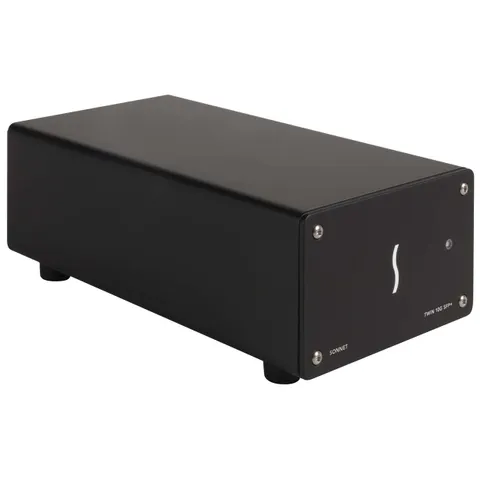

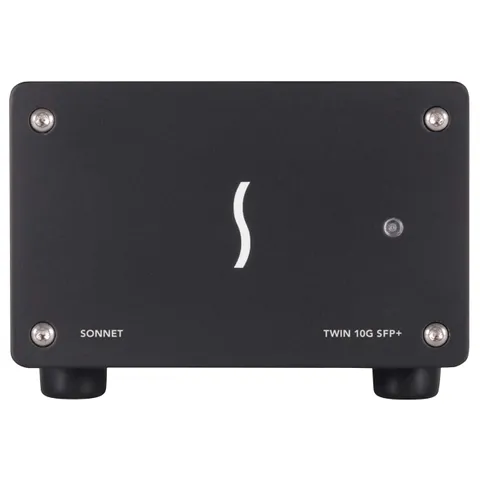

Measuring just 10.16 wide, by 20.9cm long, x 6.9cm high, the Twin10G SFP+ is small enough to easily fit in most workspaces. To ensure its operation doesn’t get in the way, the adapter’s temperature-controlled, variable-speed fan keeps the device running cool and whisper-quiet at all times, making it suitable for use in noise-sensitive environments.
Simple Setup
Simply connect the Twin10G SFP+ (Thunderbolt 2 Edition) adapter to your computer via the included Thunderbolt 2 cable, download and install a driver, install SFP+ module(s) (sold separately), connect the adapter to the network switch or to 10GbE-enabled storage, and configure the adapter’s settings through the macOS® Network control panel, Windows Device Manager, or Linux command line (or graphical utility).
Smart Performance
This Sonnet adapter’s increased throughput performance and low host-CPU utilization are achieved with functions such as flow control support, 64-bit address support for systems using more than 4GB of physical memory; and stateless offloads such as TCP, UDP and IPv4 checksum offloading, enabling your computer to perform better while large files transfers or high I/O operations take place. With its dual ports, the Sonnet adapter supports transparent failover to keep your computer connected in case a single cable is disconnected or one of the ports fails, and it also supports link aggregation (teaming) for increased throughput!
40Gbps Thunderbolt 3 Interface
The Twin10G SFP+ features a dual-port 40Gbps Thunderbolt 3 interface that offers ample bandwidth to support the adapter’s high performance, supports daisy-chaining of up to five additional Thunderbolt peripheral devices to a single port on your computer, and includes support for connecting a 4K video monitor.
Included at No Extra Charge. Thunderbolt 3 Cable. ThunderLok.
Sonnet includes a 1-meter Thunderbolt 3 cable and a Sonnet ThunderLok Thunderbolt connector retainer clip(2) to prevent accidental cable disconnections—just slide it over one end of the cable, and then plug in the connector and secure it to the chassis by turning a thumbscrew. Because of its unique design, ThunderLok remains on the cable so it won’t get lost when not in use.
